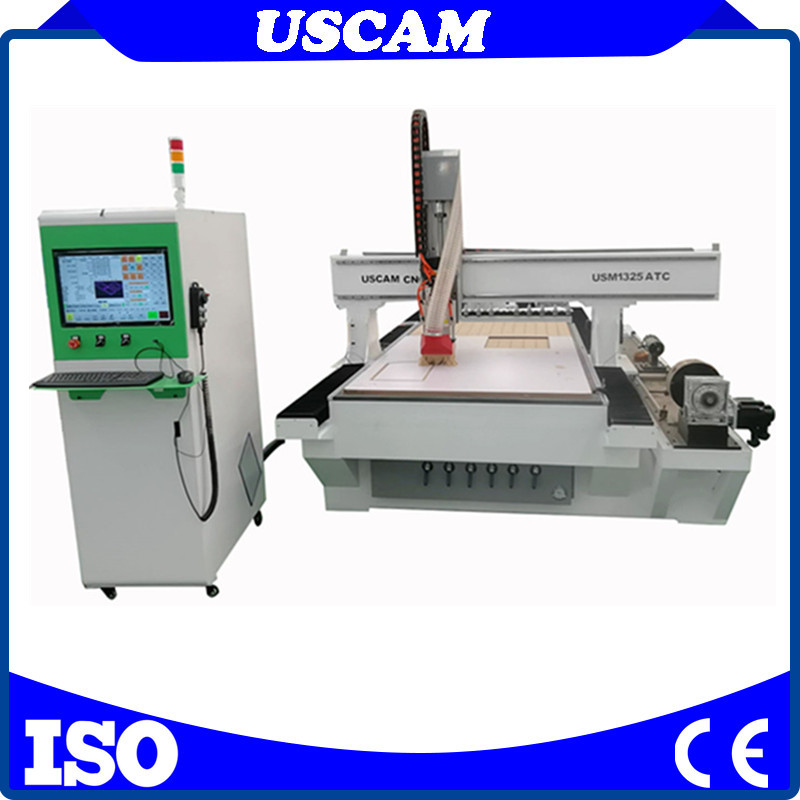

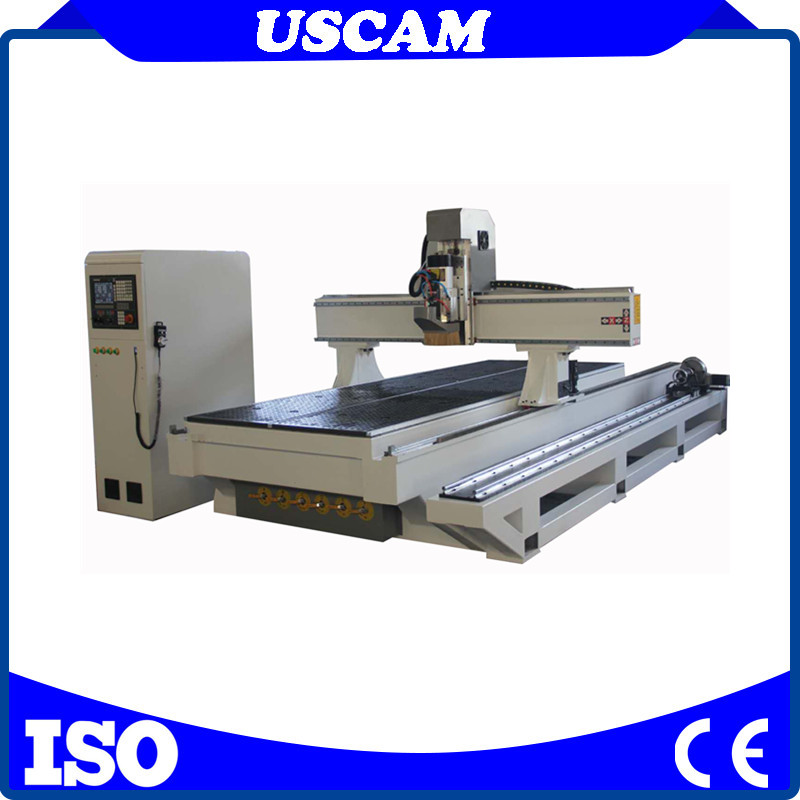

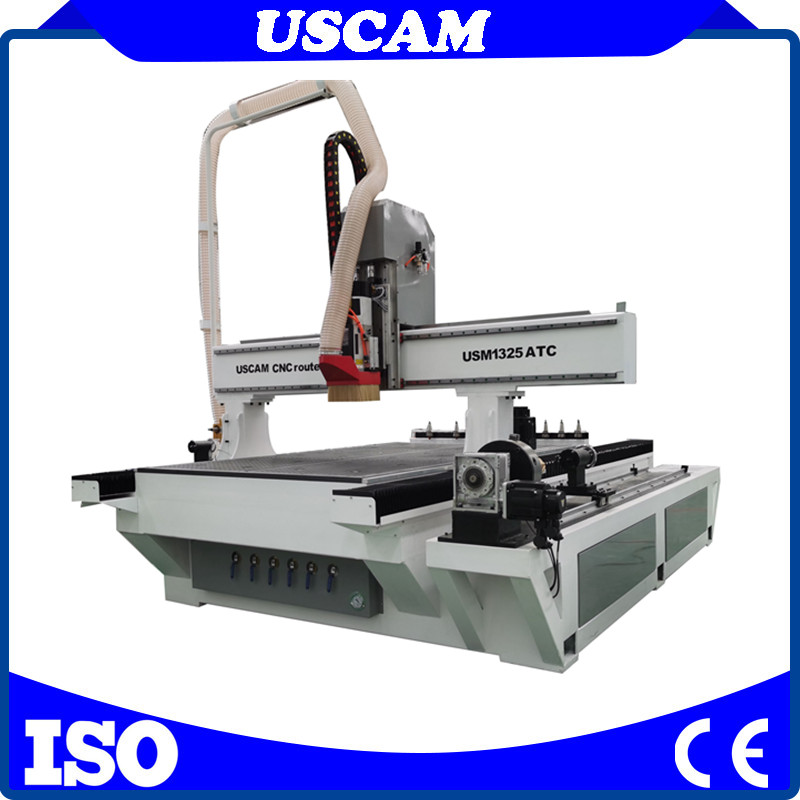

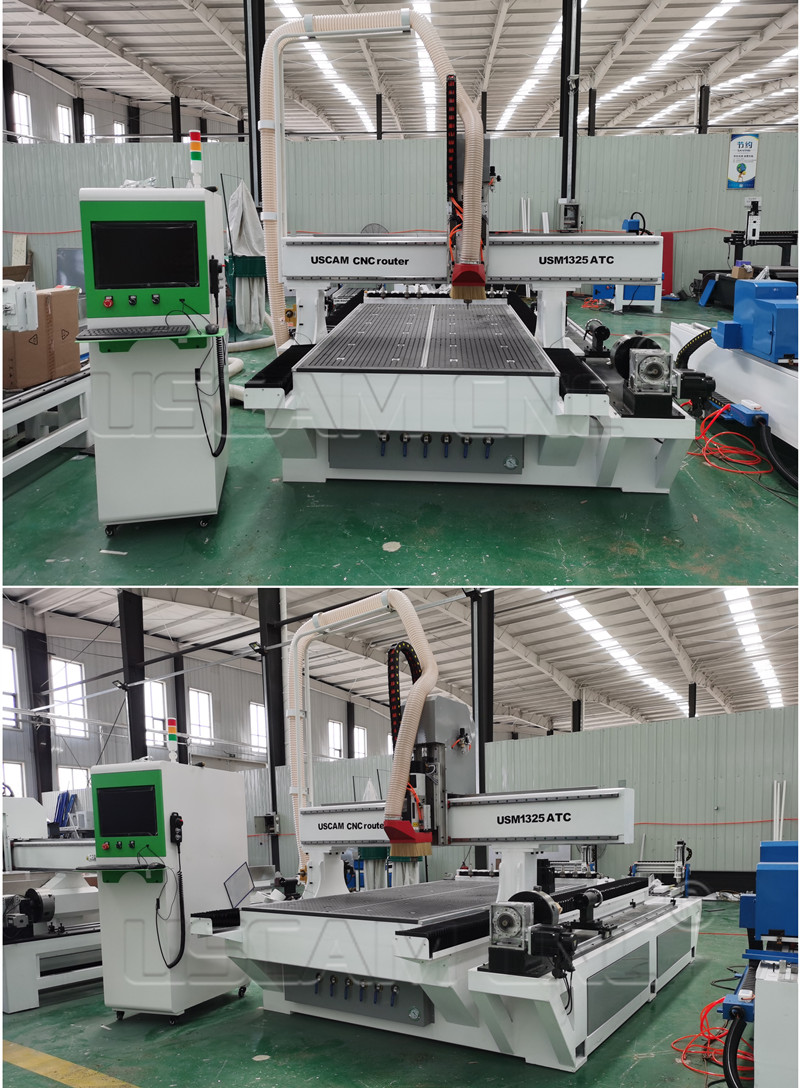

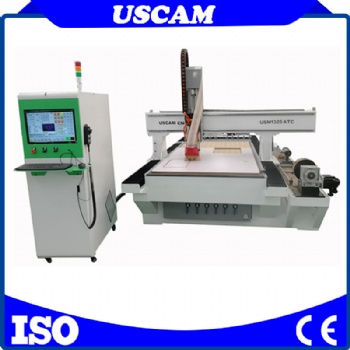

1325 Rotary Axis 3D Wood/ Woodworking/ Plywood Carving Engraving Automatic Tool Changer CNC router machine

1325 Rotary Axis 3D Wood/ Woodworking/ Plywood Carving Engraving Automatic Tool Changer CNC router machine


Linear disk ATC cnc router for Wooden Door Furnitures Cabinets engraving cutting drilling with automatic tool change air cooling spindle

ATC cnc routers.jpg

1.) Working area: 1300*2500*200mm/1500x3000x200mm
2.) ATC 9kw air cooling spindle
3.) LNC controller (Optional: Original Taiwan Syntec controller)
4.) J Leadshine servo motor(Optional: Japan Yaskawa)
5.) Fuling Inverter(Optional: Taiwan Delta inverter)
6.Omron limited switch from Japan
7.Taiwan LP square rail and TBI ball screw
8.vacuum combination table
9.7.5kw vacuum pump
10.Heavy duty structure
11.) 10/12/16 tool holders
12.) 35mm PVC sheet vacuum table
13.) Optional:drilling head with 4+5



Parameter:

ModelUSC1325/1530/2030 Disk ATC CNC ROUTER
Working area1300X2500X200mm/1500X3000X200mm
Spindle9.0KW atc air-cooling spindle
Tool changer10/12 straight tool changer
Control systemLNC controller
Servo systemLeadshine Servo motor and driver
InverterFuling inverter(Optional:Taiwan Delta)
Guide railTaiwan LP square 30 rails
TransmissionX, Y high-precision gear and rack transmission,Z Taiwan TBI ball screw (25mm), Original nut from Taiwan
BodyHeavy duty body with 8mm thickness steel
Table structureVacuum pump
Vacuum pump7.5kw water vacuum pump
Dust collecting systemDual-drum 4.0kw dust collect
Lubricating systemAutomatic lubricating system
Limit switchJapan OMRON
SensorProfessional Tool sensor
Working accuracy0.01mm
Repositioning accuracy0.01mm
Spindle speed0-24000RPM
Max. Rapid Travel Rate4000mm/min
Voltage3PH 380V 50HZ/60HZ power supply
InterfaceUSB
Flash Memory/Command128M( U Disk)/ G code/mmg/plt/
ColletER25/ER30
Packing size3520*2250*1990mm
Net weight/Gross weight1600kg/1800kg
Design softwareCompatible with Type3/Artcam/Castmate/Pore/Corelerow/Wentai, etc.
Cabledrag chain specific Cable,anti-jamming,anti-static;with high flexibility, long-term use without break
PackingStrong plywood case

i _副本d_副本.jpg
                            USCAM Quality Control
1. In the processing of production, our professional technical engineers inspect the processing to ensure the quality of products.
2. Every Machine must be tested before delivery for 8 hours , all of them are absolutely qualified.
3. 24 months guarantee of the whole machine.
4. Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
5. Lifetime maintenance free of charge.
 6. We will provide the consumable parts at an agency price when you need replacement.
7. Machine has been adjusted before delivery.
8. Our staff can be sent to your company to install or adjust if necessary.



Application areas:
Three-dimensional wave board processing, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, screens, craft window processing, shoe-shoes, game consoles and panels, mahjong tables,
computer tables and auxiliary processing of panel furniture products.

1. Standard plywood case, its compressive strength and bearing quality is better.

2. the board area is bit, the soil structure is good,  it is better in leakproofness and waterproof.

3. when importing, the plywood case is with fumigation-free, the procedure is simple.

4. Delivery Detail: within 7-15 days after received your payment

wood sample cabinet.jpg

1. Standard plywood case, its compressive strength and bearing quality is better.

2. the board area is bit, the soil structure is good,  it is better in leakproofness and waterproof.

3. when importing, the plywood case is with fumigation-free, the procedure is simple.

4. Delivery Detail: within 7-15 days after received your payment




                               After sale Service:

# 18 months guarantee of the whole machine, we will provide the consumable parts at an agency price when you need replacement.

# Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.

# Software is on update for free whole life.

# Our engineer could support you technology to your country if necessary.

# Our enginner could service on weekend even on vacation.

# Our engineer could train you in our factory for free.

# Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.

# English manual and CD video for machine using and maintaining will send to you with the machine.


                                        FAQ
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
