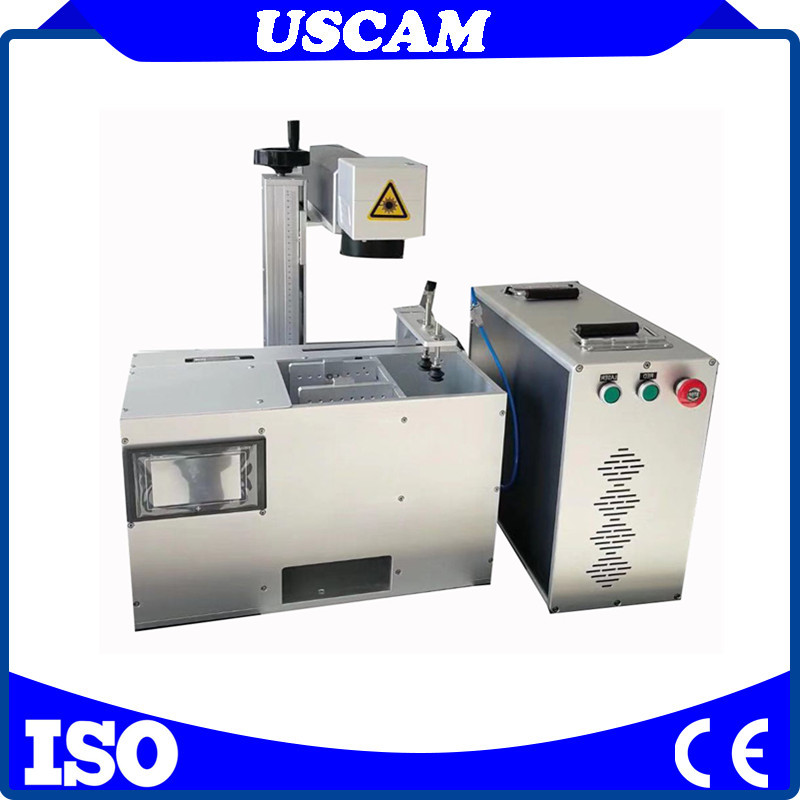

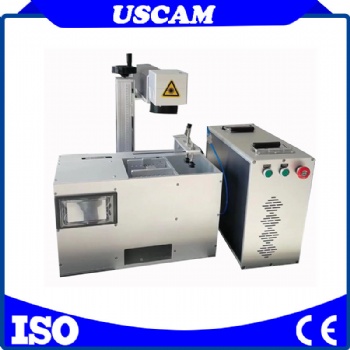

Name Plates Aluminum Number Plate Machine for CNC Fiber Laser Marking/Printing/Engraving with a Auto Feeding Device automatically CNC fiber laser marking machine

Name Plates Aluminum Number Plate Machine for CNC Fiber Laser Marking/Printing/Engraving with a Auto Feeding Device automatically CNC fiber laser marking machine

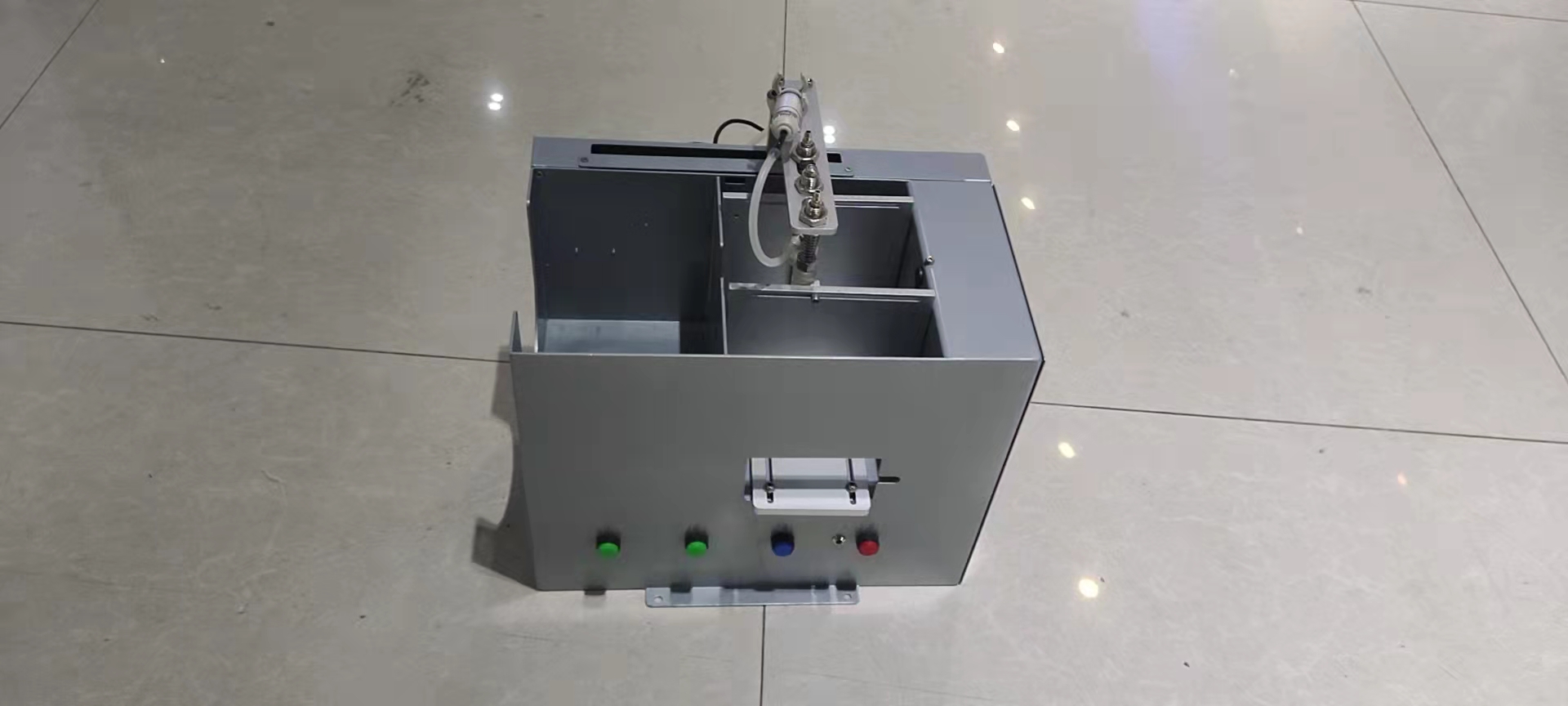

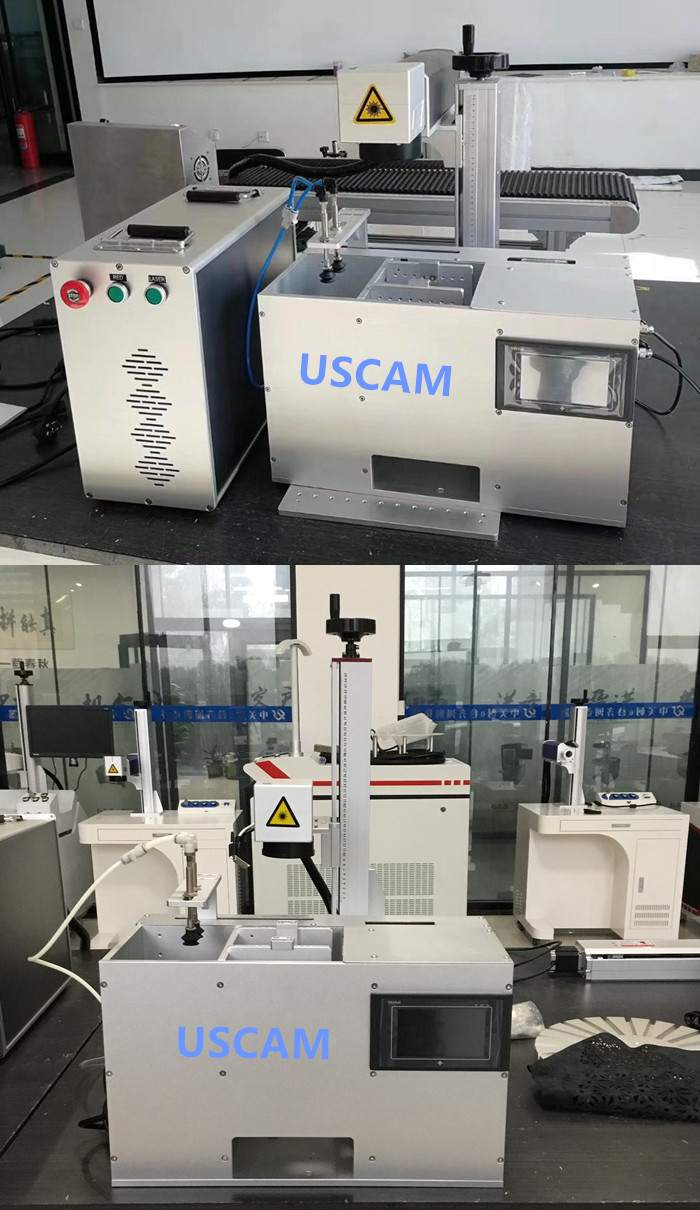

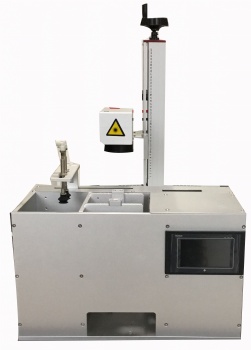

This type fiber has a special function, could mark lots of steel name plates one time automatically, since it has a professional device for auto feeding name plates.

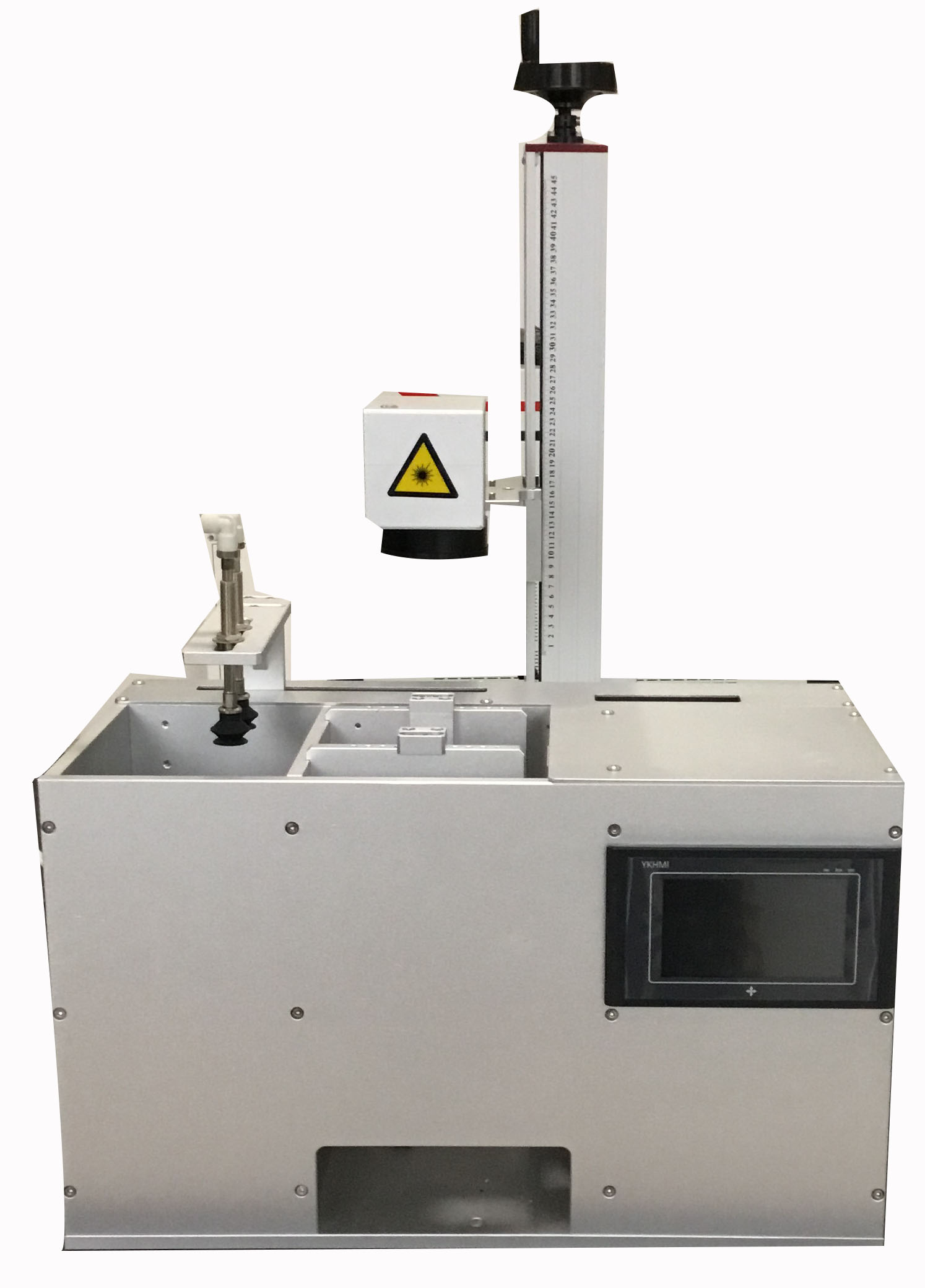

steel plate marking machine.jpg

Applicable Industries of fiber laser marking engraving machine:

It is mainly applied to the higher marking precision such as mobile phones buttons, plastic

translucent keys, electronic components, integrated circuits (IC), electrical appliances,

communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks,

jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products, etc.

  • Electrical Engineering and Electrical part and component

  • Mobile (Cover,battery,keyboard, I Phone Case)

  • Jewellery(Ring,pedeant,bracelet),eyeglass,clocks and craft

  • Building materials,PVC pipe

  • Car motor car spare part ,Insturment and meters and cutting tool

  • plastic case,aviation and aerospace,

  • military product,hardware fitting and accessory,sanitary appliance

  • food and beverage ,Medicine package and medical instrument,solar Pv industry


Samples for your reference:

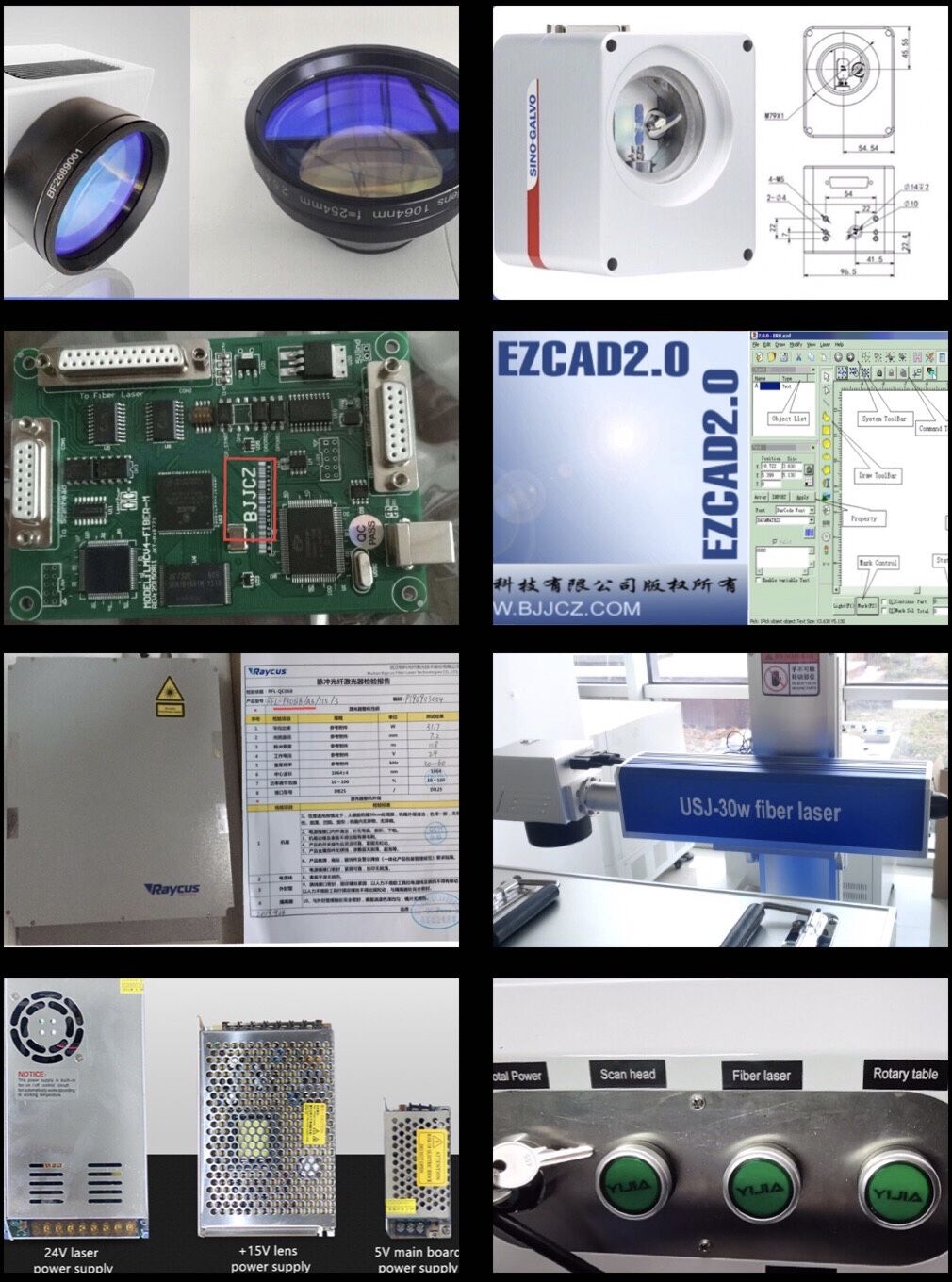

Features of  fiber laser marking engraving machine:

· Compact design, easy to move equipment, air-cooling, compact machine, good output beam quality,

   high reliability, no consumables, maintenance-free.

· Long life Working time over100,000 hours long life span. Import Germany IPG fiber laser,

   the international latest, most reliable structure, small size, power consumption is small,

   no high-voltage without large water-cooled system.

· Close to the ideal beam, USB interface, output control, optical scanning system,

   laser repetition rate high,high-speed without distortion.


Parameter of laser marker:

NOModelUSJ-20W/30W
1Laser power20W/30W
2Working area110*110/200*200mm//300*300mm (optional)
3Cooling systemair cooling
4TableAluminum alloy table
5control softwareEZCAD control software
6Operation systemMicrosoft Windows XP or Windows 2000
7Laser Wavelength 1064nm
8Graphic format supportedBMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST,PLT,etc.
9Response time0.5ms
10Life span100,000 hours
11Frequency of pulse20-100KHz
12Max marking depth≤0.4mm
13Marking speed≤7000mm/s
14Marking lines1-10 lines(in the marking area)
15Minimum line width0.01mm
16Minimum character0.15mm
17Repetability accuracy±0.002mm
18Resolution ratio0.1mm
19Marking contentText, pattern, date, bar code, etc
20Unit power≤1.2KW



CNC laser marking machine working capabality on materials:


MaterialCO2 Laser machineMaterialfiber laser machine
WoodAluminum
Acryic
Stainless Steel
FabricABS
GlassBrass
Coated MetalsCarbon Fiber
CeramicCarbon Nanotube
DelrinCobait Chorme Steel
ClothCopper
LeatherColored Delrin
MarbleDiallyl Phthalate
Matte BoardGless Filled PPEK
MelamineGless Filled Telfon
PaperMagnesium
MylarMetal Plated Ceramics
Press BoardMolybdenum
RubberMild Steel
Wood veneerNylon
Fiber GlassPolybutylene Terephthalate
Paintde MetalsPolysulphone
TitlePET
PlasticSantoprene
CorkSilicon Carbide


Packaging and Delivery:

Packaging Detail:Standard plywood Case for Export
Delivery Detail:7-10 day after order confirmation


After service:
 1.1.5years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an agency price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery
7.Our staff can be sent to your company to install or adjust if necessary.


FAQ:

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.

Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

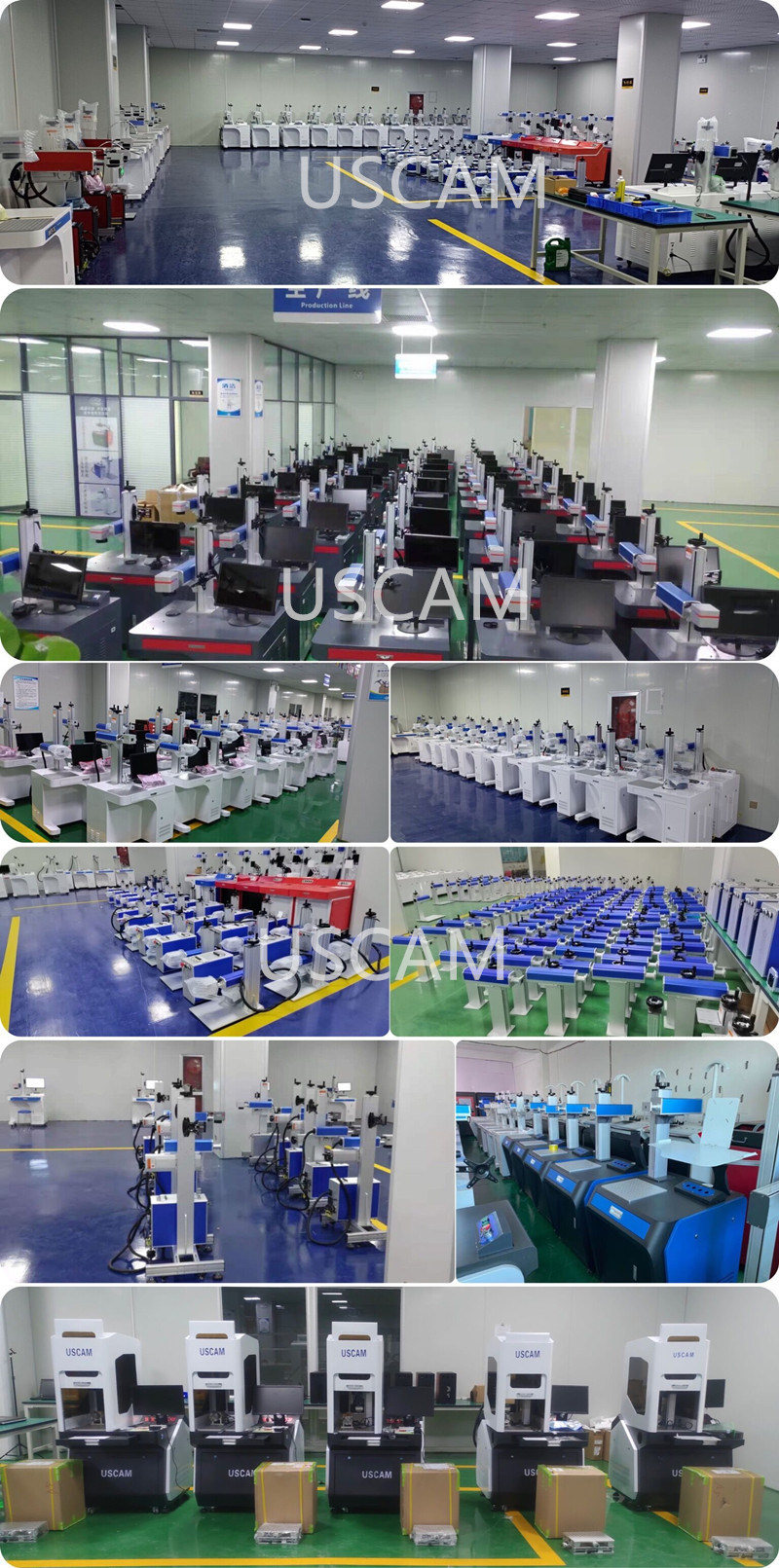

800mm factory.jpg
