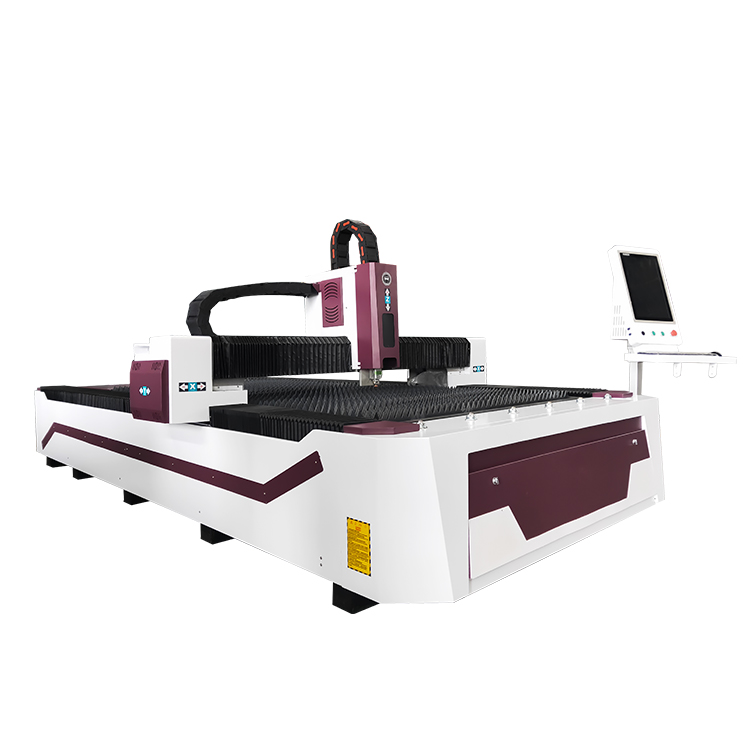

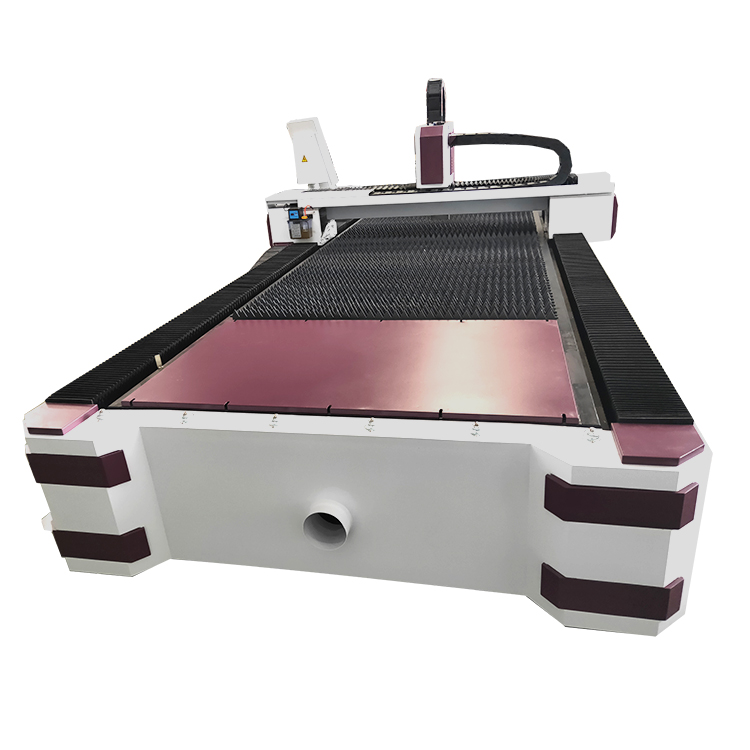

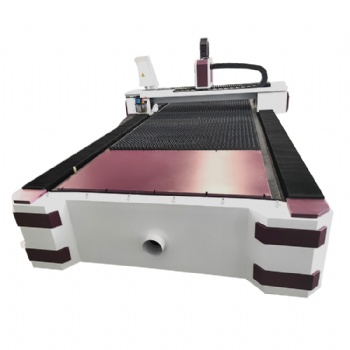

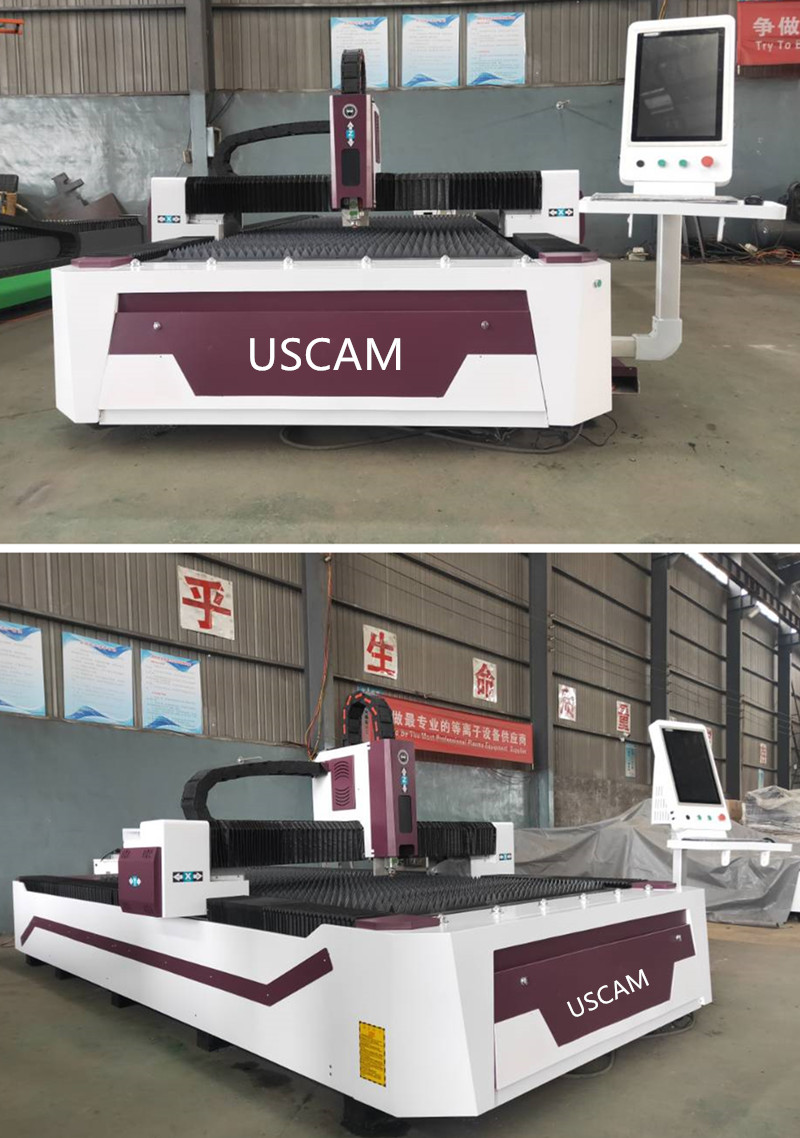

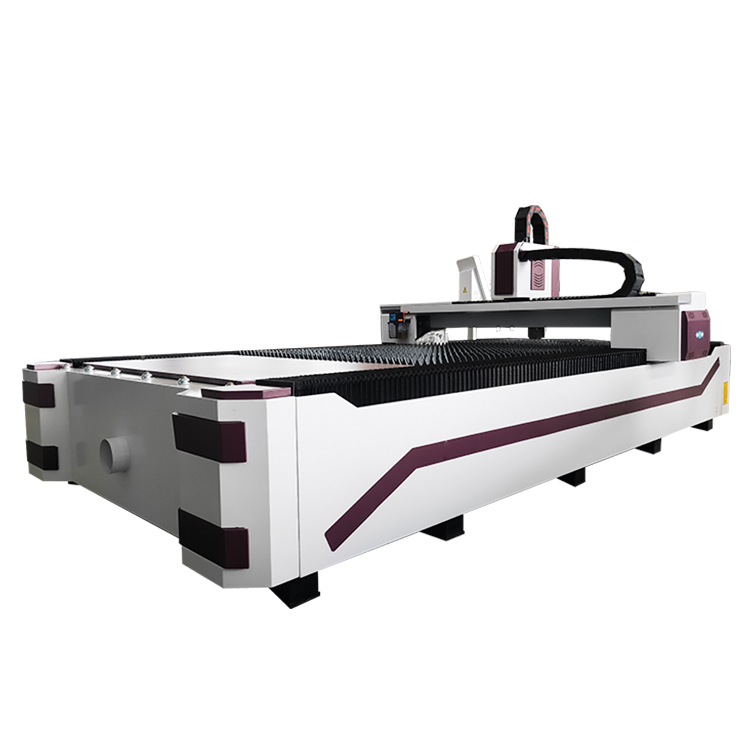

1000w 1500w 2000w 3000W cnc metal fiber laser cutting machine price
Features
* The fiber laser cutting machines use the most advanced fiber laser in the world to output a high-energy, high-density laser beam and focuses it on the surface of the workpiece. The area on the workpiece that is irradiated with the ultra-fine focus spot is instantly melted and vaporized, and the spot is moved by numerical control mechanically. Automatic cutting is achieved by the irradiation position.
* The equipment adopts the form of a gantry structure and is driven bilaterally with gear racks. It has the features of stable structure, good rigidity and high speed, and its positioning speed is as fast as 60m/min. The bed adopts large-sized portal milling machine processing, multiple annealing and timely processing, with long-term stability.
* Servo motors and transmission systems such as speed reducers, gear racks and guide rails are made of imported brands plus gantry beam structure to ensure high-precision machining of equipment, rapid dynamic response, and long-term stability, representing the development direction of laser cutting machines.
# Working area: 1300*2500mm/1500x3000mm
# Laser power Fiber 500w/1000w/1500w/2000w Raycus brand
# cooling system: water chiller
# Red point, auto focus, follow-up system
# X axis Y axis HIWIN linear square rail from Taiwan
# Ball screw from Taiwan
# Servo motor and drivers from Japan
# imported Lenses and mirror
# software: cypcut
# supports format: DXF,DXP, NC, G, etc
# 380V/ 50HZ
# weight: 5T
Parameter:
| Model | USJ1325 | USJ1530 |
| Laser Power | 1000w/1500w/2000w/3000W | |
| Laser Source | Raycus(Optional: IPG Laser Fiber Laser Source) | |
| Laser Type | Imported Fiber Laser or Top Brand China Fiber Laser | |
| Laser Technology | Raycus/Germany IPG Technology | |
| XYZ Working area | 2500*1300 | 3000*1500 |
| Max. Cutting Thickness (CS) | 1mm - 5mm | |
| Max. Cutting Speed | 5-15 Meters / Min (up to materials) | |
| Max. Location speed | 60m/min | |
| Laser wavelength | 1070nm | |
| Minimum line width | ≤0.1mm | |
| Location precision | ≤±0.05mm | |
| Re-location precision | ±0.02mm | |
| Max. moving speed | 100m/min | |
| Supporting Format | PLT, DXF, BMP, AI | |
| Power demand | 380V/50Hz | |
| Cooling Way | Water Cooling | |
| Worktable max. load | 4000KGS | |
| Transmission Method | Ball Screw Transmission | |
| Table-driven system | Japanese Imported Servo Motor & Driving System | |
| Focus Method | Following and Automatic Adjust Focus | |
| Control Method | Offline Movement Control | |
| Control software | Perfect Laser Professional Laser Cutting Software | |
Applied industries and applicable materials:
Metal cutting, electrical switch manufacturing, elevator manufacturing, household appliance manufacturing, kitchenware manufacturing, tool processing, and other machinery manufacturing and processing industries. Professional for cutting a variety of thin metal sheet, high-quality cutting 0.5 ~ 6mm carbon steel plate, 0.5 ~ 3mm stainless steel plate, 0.5-2mm aluminum plate, but also cutting galvanized sheet, electrolytic plate, silicon steel, manganese steel and other metal materials.
Laser source option
MAX/Raycus: 1000W, 1500W,2200w,3300W,4400W
IPG: 1000W, 1500W, 2000W, 3000W, 4000W,
Different laser power due to the different laser cutting thickness,materials and the production quantity.
Installation and packing
1. Standard plywood case, its compressive strength and bearing quality is better.
2. the board area is bit, the soil structure is good, it is better in leakproofness and waterproof.
3. when importing, the plywood case is with fumigation-free, the procedure is simple.
4. Delivery Detail: within 7-15 days after received your payment
After Sale Service:
1. 12months-quality guarantythe machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period without human damage.
2. Free training course at our plant.
3. We will provide the consumable parts at an agency price when you need replacement.
4. 24 hours on line service each day, free technical support.
5. Our staff can be sent to your company to install or adjust if necessary.
6. User-friendly English manual and video CD for machine using and maintaining
7. My company English software can do all kinds of pattern recognition,software upgrading and updating free
FAQ
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe tranportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Advantages
1. Slotted narrow, high precision, flat and smooth cutting surface, no need to reprocess the post process after cutting.
2. The laser has a high degree of automation, can be completely closed, no pollution, and has little noise, which greatly improves the working environment for operators.
3, processing costs low. One-time investment in equipment, continuous, large-scale processing eventually reduces the processing cost of each part.
4, laser non-contact processing, inertia, processing speed, with the CNC system of CAD / CAM software programming, time-saving and convenient, the overall efficiency is high.
5. The high energy density of the laser is sufficient to melt any metal. It is particularly suitable for processing some materials that are hard to process with high hardness, high brittleness, and high melting point.
6, laser processing energy density is very large, the role of a short time, heat affected area is small, thermal deformation is small, thermal stress is small, plus the laser is non-mechanical contact processing, no mechanical stress on the workpiece, suitable for precision machining.
7. The laser processing system itself is a set of computer system, which can be conveniently arranged and modified to suit individualized processing. Especially for some sheet metal parts with complex outline and shape, batches are relatively small and the product life cycle is not long. Measured from the perspective of technology, economic cost, and time, it is not worthwhile to make molds. Laser cutting is particularly advantageous.
