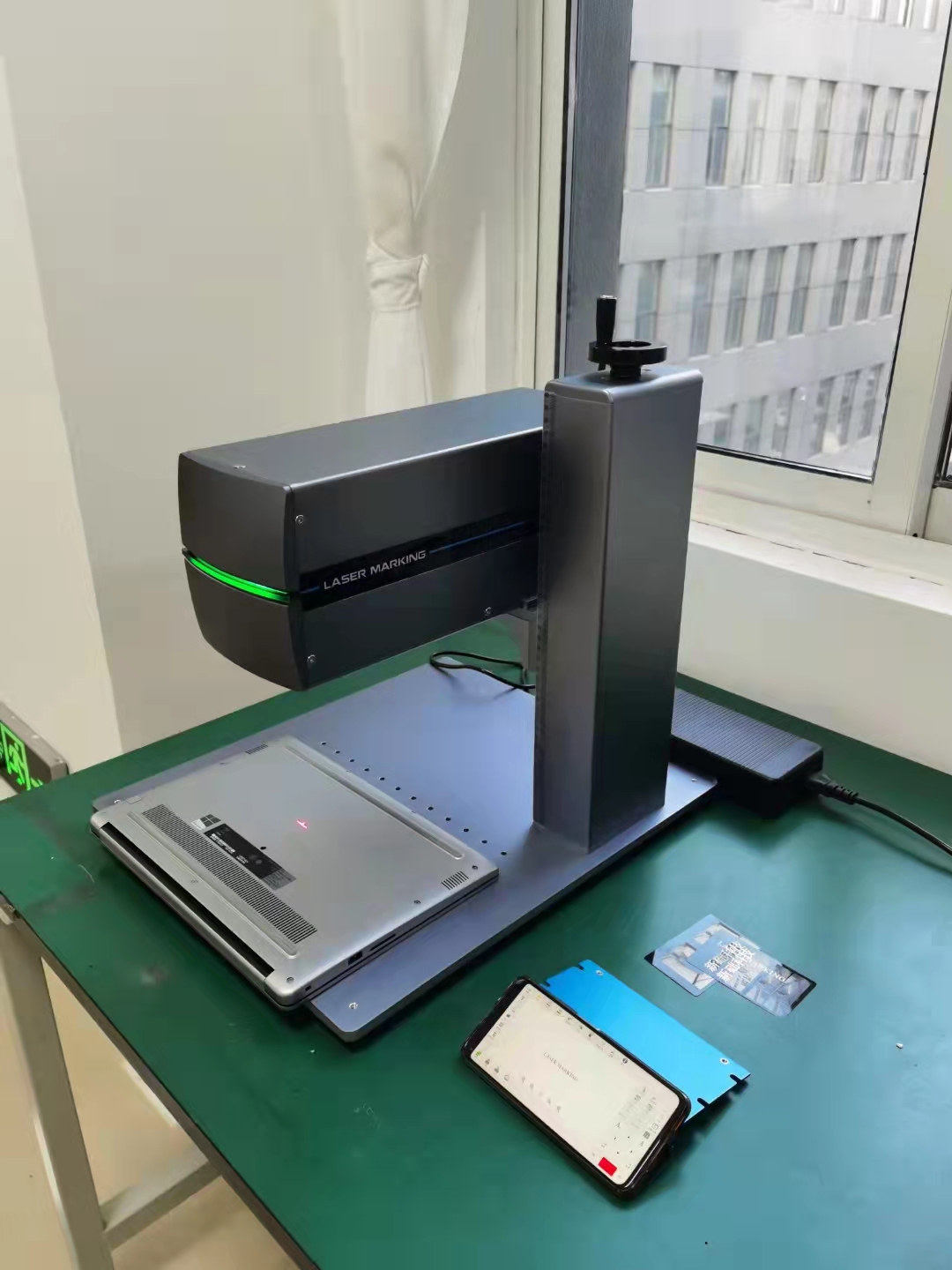

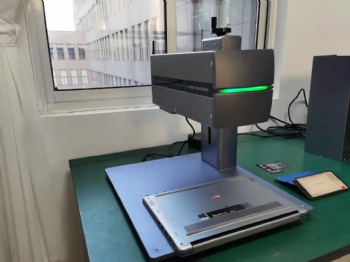

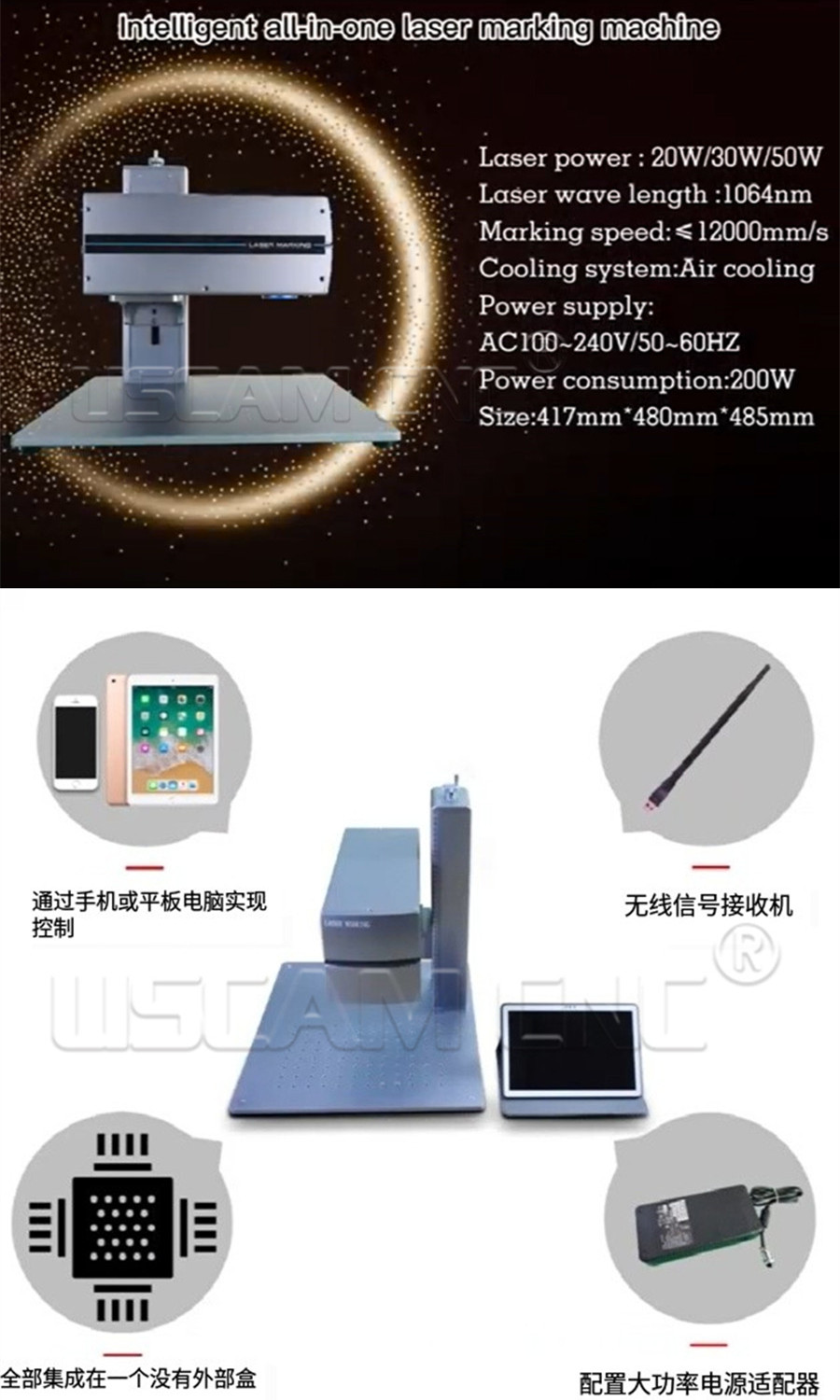

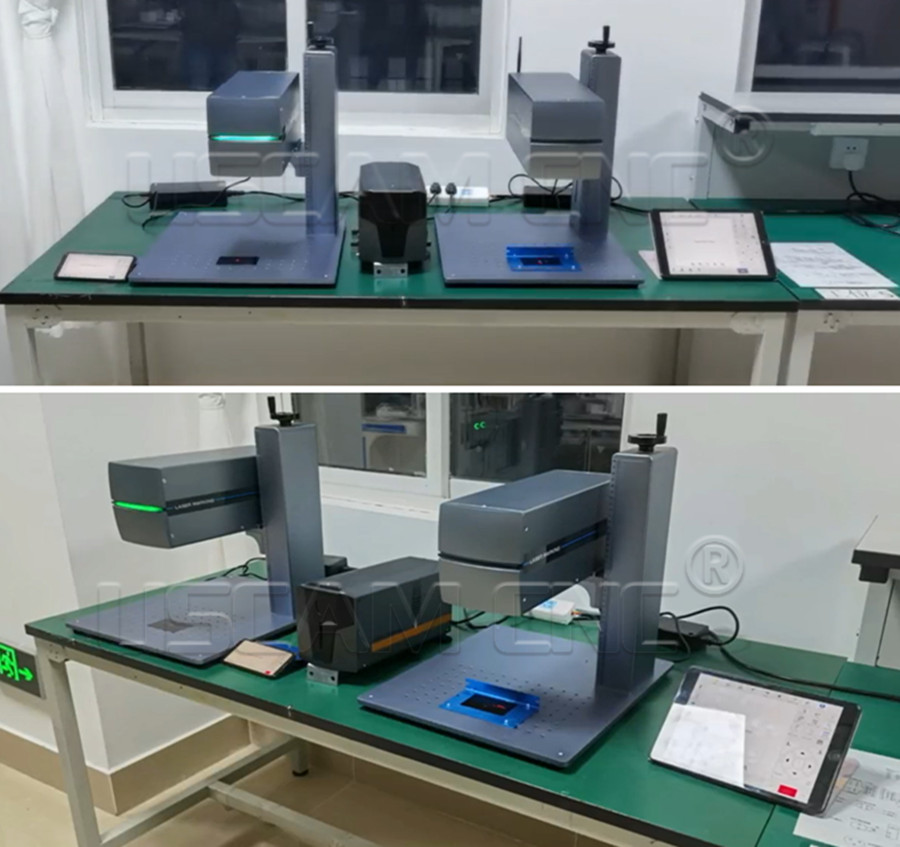

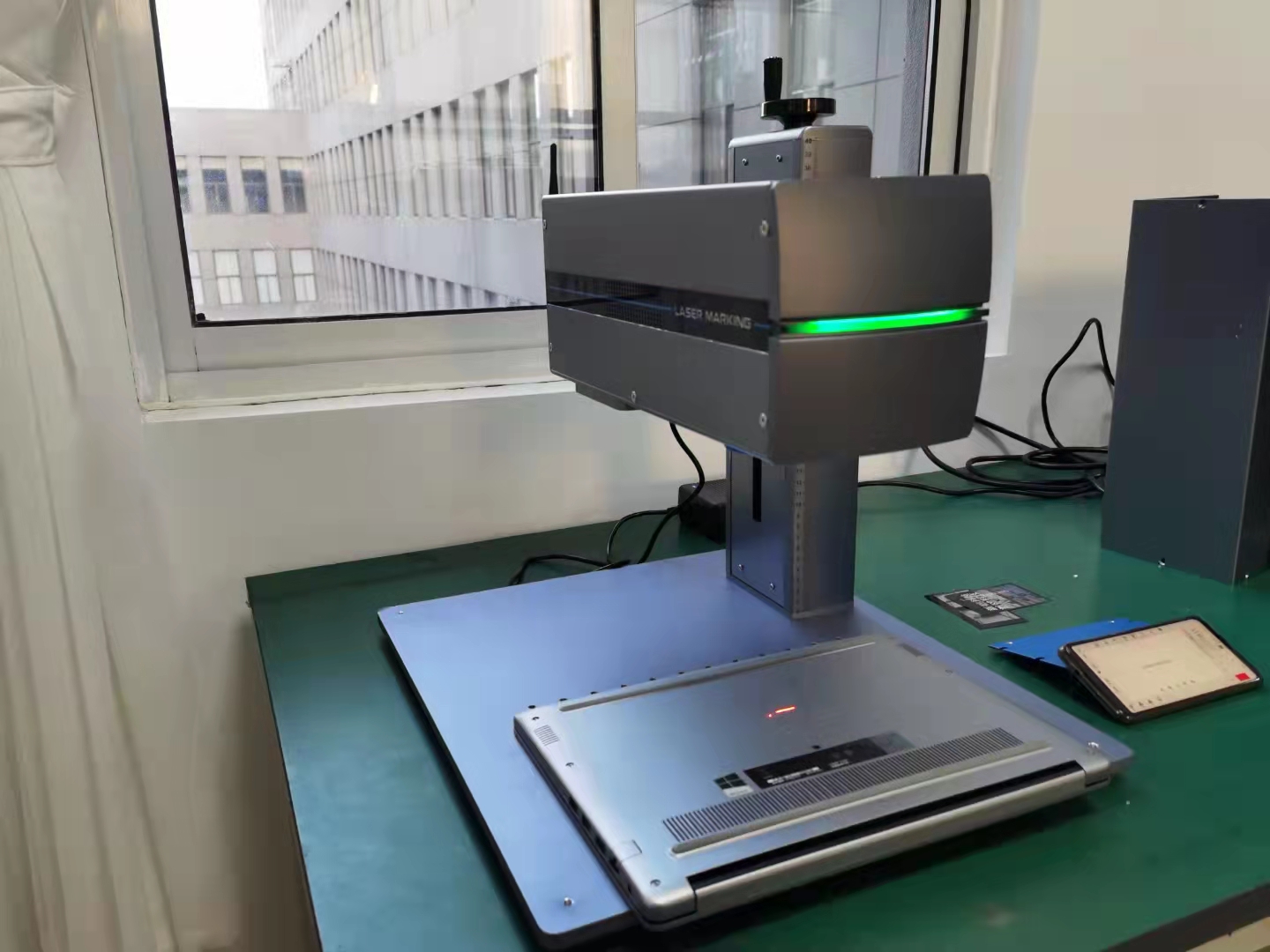

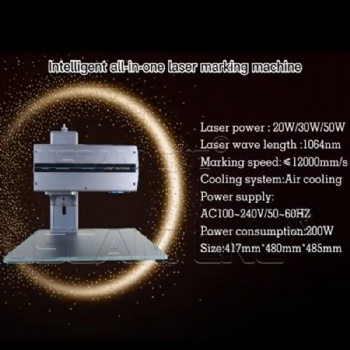

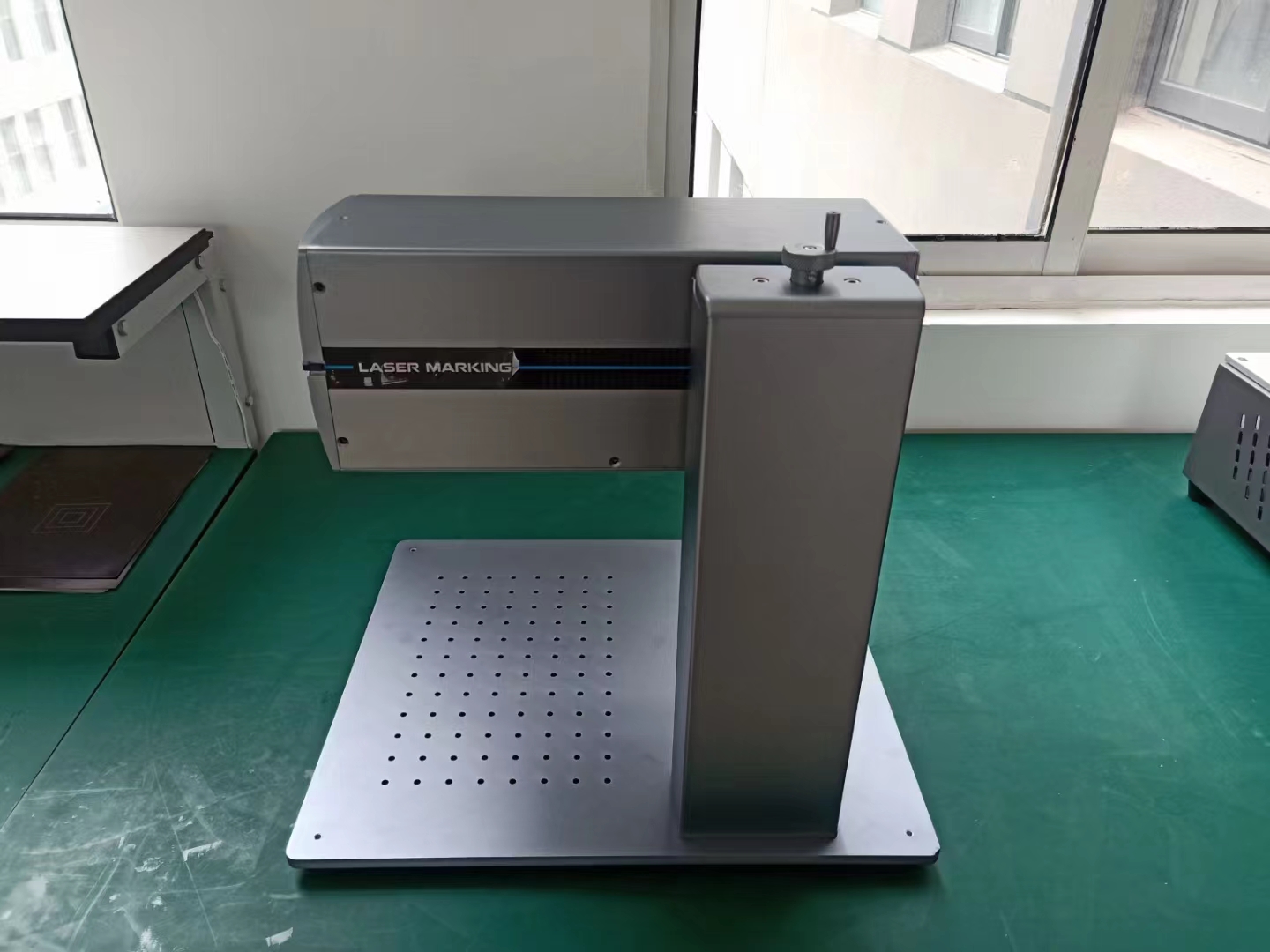

What's a Intelligent all-in-one laser marker mobile phone ipad control CNC fiber laser marking machine ?

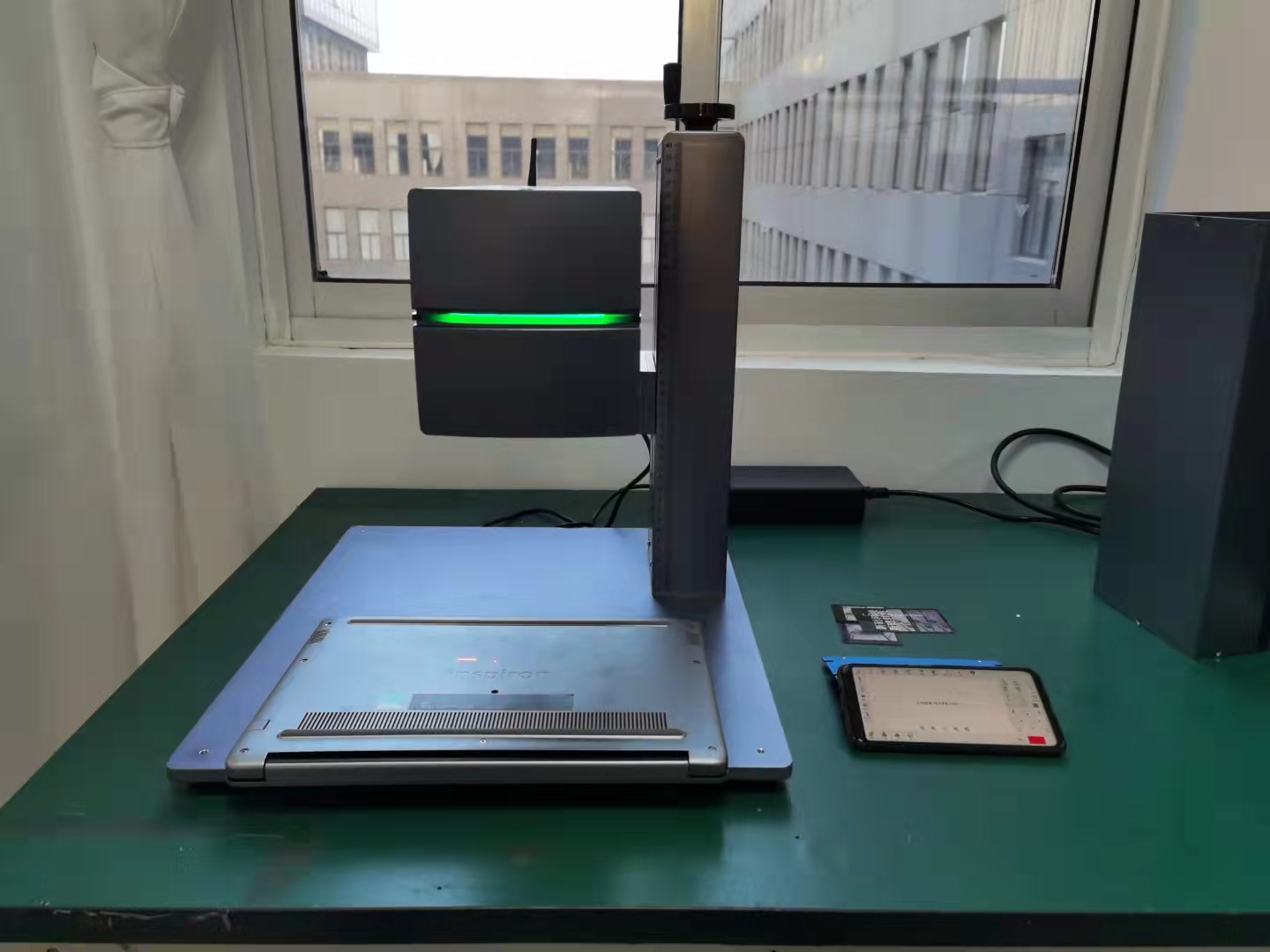

| USCAM All-in-one laser is a new kind/type of normal Fiber laser marking machines, which could be controlled by mobile phone(Android/Apple system) or Ipad/Pad. The ew is with Integrated design, independent power supply and optional battery. The weight of the whole machine is 8.5kg. Easy to expand flight, automatic production line, robot, 2.5D deep relief relief, support electric lift, auto focus. Support 20w, 30w, 50w. It also use laser beams to permanently mark the surface of various materials. The effect of marking is to expose the deep material through the evaporation of the surface material, or to "engrave" traces through the chemical and physical changes of the surface material caused by light energy, or to burn part of the material through light energy, so as to engrave exquisite patterns, Trademarks, characters, barcodes and other graphics are mainly used in some occasions that require more finesse and higher precision. Used in electronic components, integrated circuits (IC), electrical appliances, mobile communications, hardware products, tool accessories, precision instruments,glasses,watches,jewelry, auto parts, plastic buttons, building materials,PVC pipes. The so-called fiber laser marking machine means that the marking machine uses a fiber laser. The fiber laser has the characteristicsof small size (no water cooling device, air cooling), good beam quality (fundamental mode), and maintenance-free. |
Features of fiber laser marking engraving machine:
| 1.Compact design, easy to move equipment, air-cooling, compact machine, good output beam quality, high reliability, no consumables, maintenance-free. 2.Long life Working time over100,000 hours long life span. Import Germany IPG fiber laser, the international latest, most reliable structure, small size, power consumption is small, no high-voltage without large water-cooled system. 3.Close to the ideal beam, USB interface, output control, optical scanning system,laser repetition rate high,high-speed without distortion. 4.Controlled by mobile phone(Android/Apple system) or Ipad/Pad. 5.The new type is with Integrated design, independent power supply and optional battery. 6.The weight of the whole machine is 8.5kg only, which is more easy for taking. 7.Easy to expand flight, automatic production line, robot, 2.5D deep relief relief, support electric lift, auto focus. 8.Support 20w, 30w, 50w. |

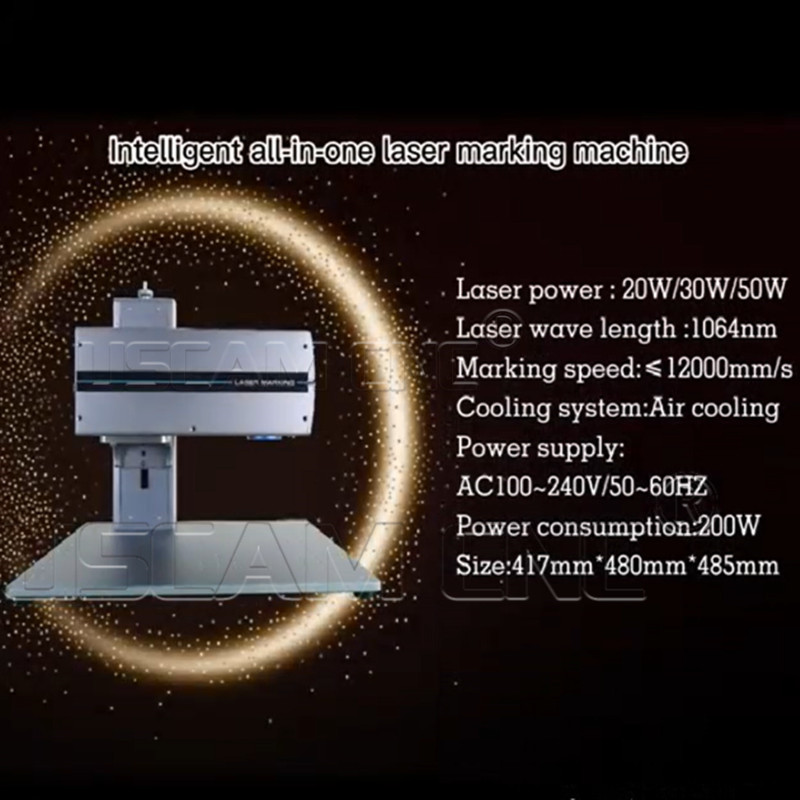

Parameter:
| NO | Model | USJ-20W(30W/50W/100w) |
| 1 | Laser power | 20W(30W/50W/100w) |
| 2 | Working area | 100*100/200*200mm//300*300mm/400x400mm (optional) |
| 3 | Cooling system | air cooling |
| 4 | Table | Aluminum alloy table |
| 5 | control software | EZCAD control software |
| 6 | Operation system | Windows 7/8/10 |
| 7 | Laser Wavelength | 1064nm |
| 8 | Graphic format supported | BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST,PLT,etc. |
| 9 | Response time | 0.5ms |
| 10 | Life span | 100,000 hours |
| 11 | Frequency of pulse | 20-100KHz |
| 12 | Max marking depth | ≤0.4mm |
| 13 | Marking speed | ≤7000mm/s |
| 14 | Marking lines | 1-10 lines(in the marking area) |
| 15 | Minimum line width | 0.01mm |
| 16 | Minimum character | 0.15mm |
| 17 | Repetability accuracy | ±0.002mm |
| 18 | Resolution ratio | 0.1mm |
| 19 | Marking content | Text, pattern, date, bar code, etc |
| 20 | Unit power | ≤1.2KW |
| Parameter of fiber laser source | |||
| Pulsed fiber laser | 20w | 30w | 50w |
| Wavelength(nm) | 1060~1085 | 1060~1085 | 1060~1085 |
| Polarization | Random | Random | Random |
| Optical isolator | Yes | Yes | Yes |
| Nominal average output power (W) | ≥20 | ≥30 | ≥50 |
| Single pulse energy (mJ) @20kHz | 1 | 1@30kHz | 1@50kHz |
| Beam quality(M2) | <1.8 | <1.8 | <1.8 |
| Beam Diameter(mm) | 6~8 | 6~8 | 6~8 |
| Pulse duration(ns)@20kHz | <120 | <120@30kHz | 90-150@50kHz |
| Pulse repetition rate(kHz) | 20 - 60 | 30 - 60 | 50 - 100 |
| Output Power Tunability(%) | 10-100 | 10-100 | 10-100 |
| Output Fiber Cable length(m) | 2.0 | 2.0 | 2.0 |
| Working voltage(VDC) | 24±1 | 24±1 | 24±1 |
| Power consumption(20ºC)(W) | 200 | 200 | 200 |
| Cooling | Forced Air Cooled | Forced Air Cooled | Forced Air Cooled |
| Operating temperature | 0ºC~40ºC | ||
| Store temperature | -10ºC~60ºC | ||
| humidity | 30%~85% | ||

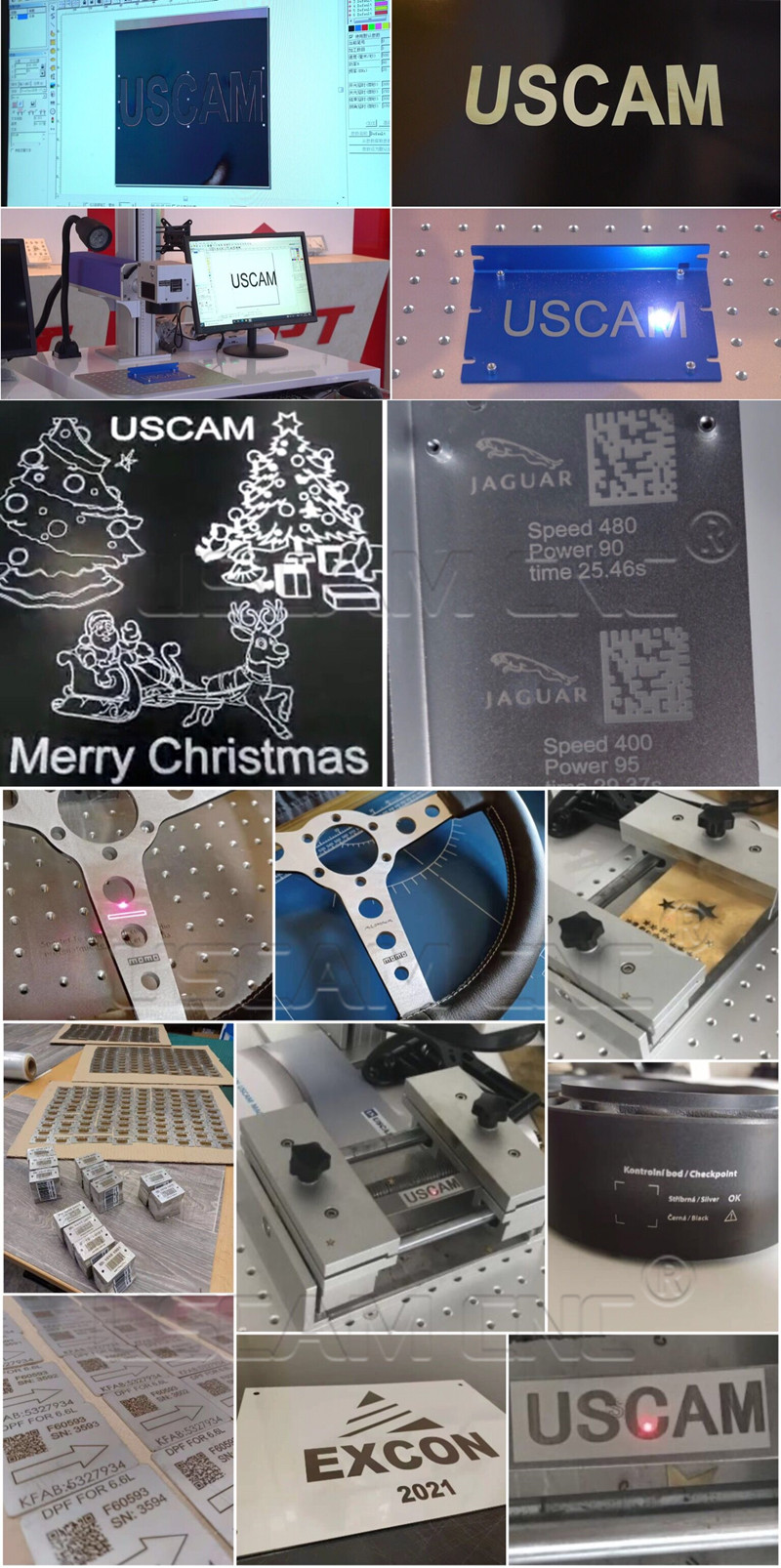

Application
It is mainly applied to the higher marking precision such as mobile phones buttons, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products, etc. |
| Material | CO2 Laser machine | Material | fiber laser machine |
| Wood | √ | Aluminum | √ |
| Acryic | √ | Stainless Steel | √ |
| Fabric | √ | ABS | √ |
| Glass | √ | Brass | √ |
| Coated Metals | √ | Carbon Fiber | √ |
| Ceramic | √ | Carbon Nanotube | √ |
| Delrin | √ | Cobait Chorme Steel | √ |
| Cloth | √ | Copper | √ |
| Leather | √ | Colored Delrin | √ |
| Marble | √ | Diallyl Phthalate | √ |
| Matte Board | √ | Gless Filled PPEK | √ |
| Melamine | √ | Gless Filled Telfon | √ |
| Paper | √ | Magnesium | √ |
| Mylar | √ | Metal Plated Ceramics | √ |
| Press Board | √ | Molybdenum | √ |
| Rubber | √ | Mild Steel | √ |
| Wood veneer | √ | Nylon | √ |
| Fiber Glass | √ | Polybutylene Terephthalate | √ |
| Paintde Metals | √ | Polysulphone | √ |
| Title | √ | PET | √ |
| Plastic | √ | Santoprene | √ |
| Cork | √ | Silicon Carbide | √ |

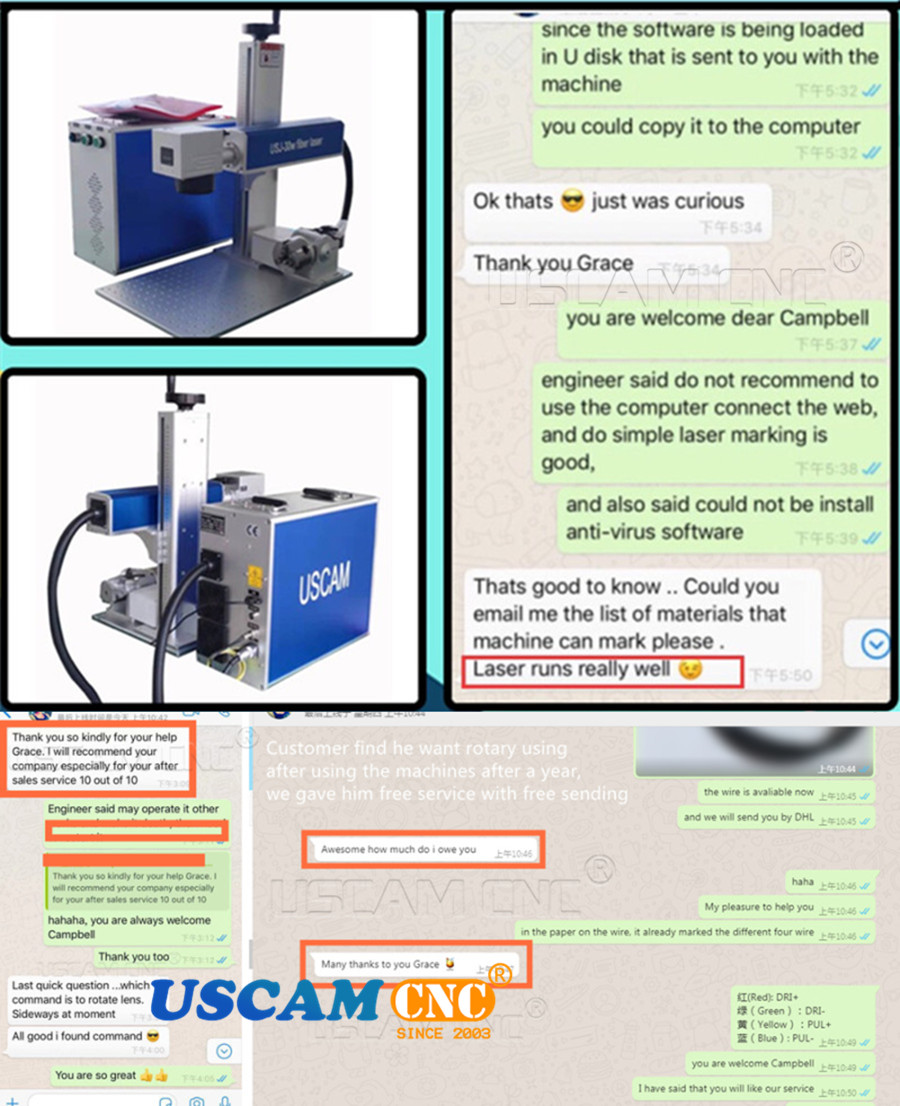

Customers' feedback
| # Customers are using machines very well and almost no problem. # Always get returned orders from agents and customers. # 10 points of praise for service from our customers |
Certifications & Sevice
QC
Having been export to USA, Europe, Africa, Central America, Latin America, Mexico, UAE, Yemen, Pakistan, India, Korea, etc.
We have CE, FDA certification for easy exporting and importing.
Service
# 24 months-quality guarantythe machine with main parts(excluding the consumables) shall be changed free of charge if there is
any problemduring the warranty period without human damage.
# We will provide the consumable parts at an agency price when you need replacement.
# 24 hours on line service each day, by wechat, QQ, e-mail, cellphone or remotely controlled online.
# Lifetime patience and professional question and answer service(free technical support), even if it exceeds the warranty period.
# English manual and video for machine using and maintaining will send to you with the machine.
# Free training course at our plant.
# Our staff can be sent to your company to install or adjust if necessary.

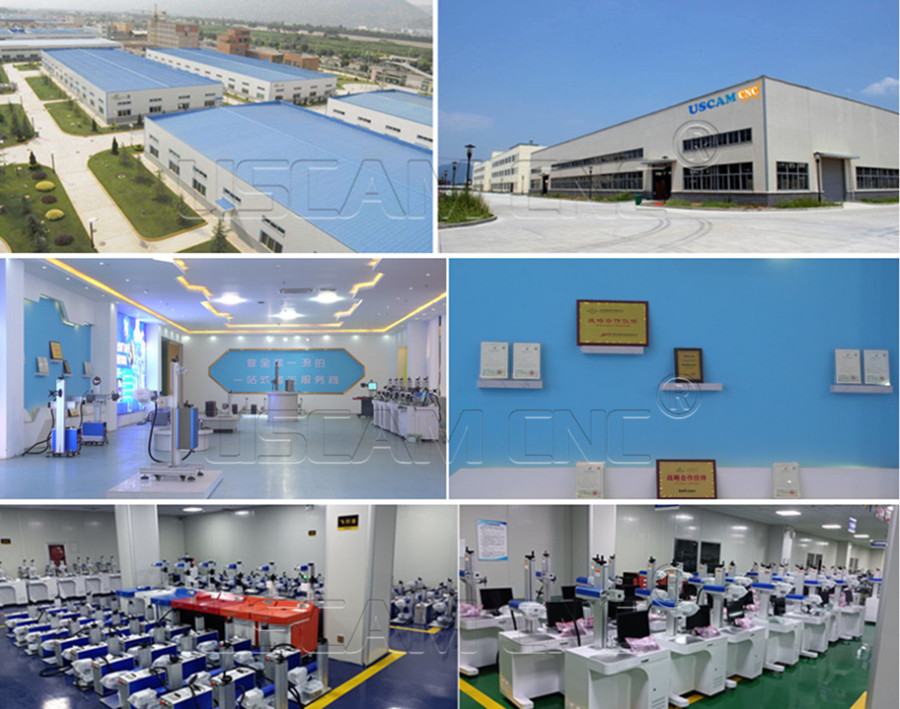

Company Profile
| USCAM specialized in in fiber laser cutting machine, laser marking machine, laser cleaning machine, laser welding machine, co2 laser, CNC router (ATC, Stone machine, molding machine, vibrating knife etc), plasma (gantry plasma, 5 axis, 8 axis and robort plasma etc) and other fields are the leading companies in China's laser industry since 2003. All machines have passed CE FDA certification, and the main configuration adopts top components imported from Italy, Japan, Germany, the United States, etc., such as Synrid, Coherent, HSD spindle, THK bearing system, Siemens control system, YASKAWA servo. Relying on strong high-tech strength, it has been highly recognized by relevant international quality systems and government departments in product software research and development, quality inspection files, etc. High-quality products and excellent after-sales service have enabled the company to reach an excellent level, and have been widely supported by customers and agents. |
FAQ
Q1:How to choose a CNC fiber laser marking machine?
1).Comfirming the marking field lens according to your marking size.
| Lens model | Marking size | Power Aviliable |
| F160 | 110*110mm | 20w/30w/50w |
| F210 | 150x150mm | 20w/30w/50w |
| F290 | 200*200mm | 20w/30w/50w |
| F430 | 300*300mm | 30w/50w |
| F580 | 400x400mm | 50w |
| Note: 100w is Quartz lens (Since normal lens easy to be broken because of 100w is bigger power in marking) | ||
2).Choose a big brand laser source (Standard is Raycus QB type)
3).Confirming if you need extra optional parts according to your marking requirements:
Q2: what's the Payment term ?
30% T/T in advance and 70% before delivery.
Q3: What's the process of the order ?
1).Proforma Invoice
If you like the machine we offered, then we will make you an Proforma Invoice. Then you could pay 30% T/T in
advance, thus we arrange the production for you immediately.
2).Production:
After the 30% T/T as deposit, we will produce the machine immediately, then after after it finished, we will take
video test and pictures for you. If you agree, you could pay the balance.
3).Shipping matter:.
You could ship with your own shipper if it's convenient. and we could help to ship for you.
