| 2D Glavometer Scanner Laser Marking Machine CO2 Laser for Eggs,jeans engraving with auto up-down system |
Introduction (What's the 2d RF tube CO2 laser ?)
| USCAM 2d dynamic laser CO2 laser marking machine adopts imported core components, equipped with a series of advanced technologies such as high-speed, high-precision Original Sino-galvo 2D galvanometer scanning system and Original BJJCZ Control card and Original EZCAD software, high-quality optical components, stable laser power supply and automatic control system and parts. The laser tube is RF metal tube, could refill the co2 gas after the tube is used up. So is use in recycle. USCAM laser marking machine has precise, reliable and high-speed performance, which can meet the needs of 24-hour mass production. |
Parameter of RF tube co2 laser marking machine:
| NO | Model | USC-30W/40W/60W/100W |
| 1 | Laser power | 30W/40W/60W/100W RF tube(Dawei brand/Synrid brand) |
| 2 | Working area | 110*110/200*200mm//300*300mm/400x400mm (optional) |
| 3 | Cooling system | Air chiller |
| 4 | Table | Aluminum alloy table |
| 5 | control software | |
| 6 | Operation system | Microsoft windows 7/8/10 |
| 7 | Laser Wavelength | 10.64μm |
| 8 | Graphic format supported | BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST,PLT,etc. |
| 9 | Response time | 0.5ms |
| 10 | Life span | 8000-10000 hours |
| 11 | Frequency of pulse | 20-100KHz |
| 12 | Max marking depth | ≤0.4mm |
| 13 | Marking speed | ≤7000mm/s |
| 14 | Marking lines | 1-10 lines(in the marking area) |
| 15 | Minimum line width | 0.01mm |
| 16 | Minimum character | 0.15mm |
| 17 | Repetability accuracy | ±0.002mm |
| 18 | Resolution ratio | 0.1mm |
| 19 | Marking content | English letter, charater, figurre and any graphic,Text, pattern, date, bar code, etc |
| 20 | Unit power | ≤1.2KW |

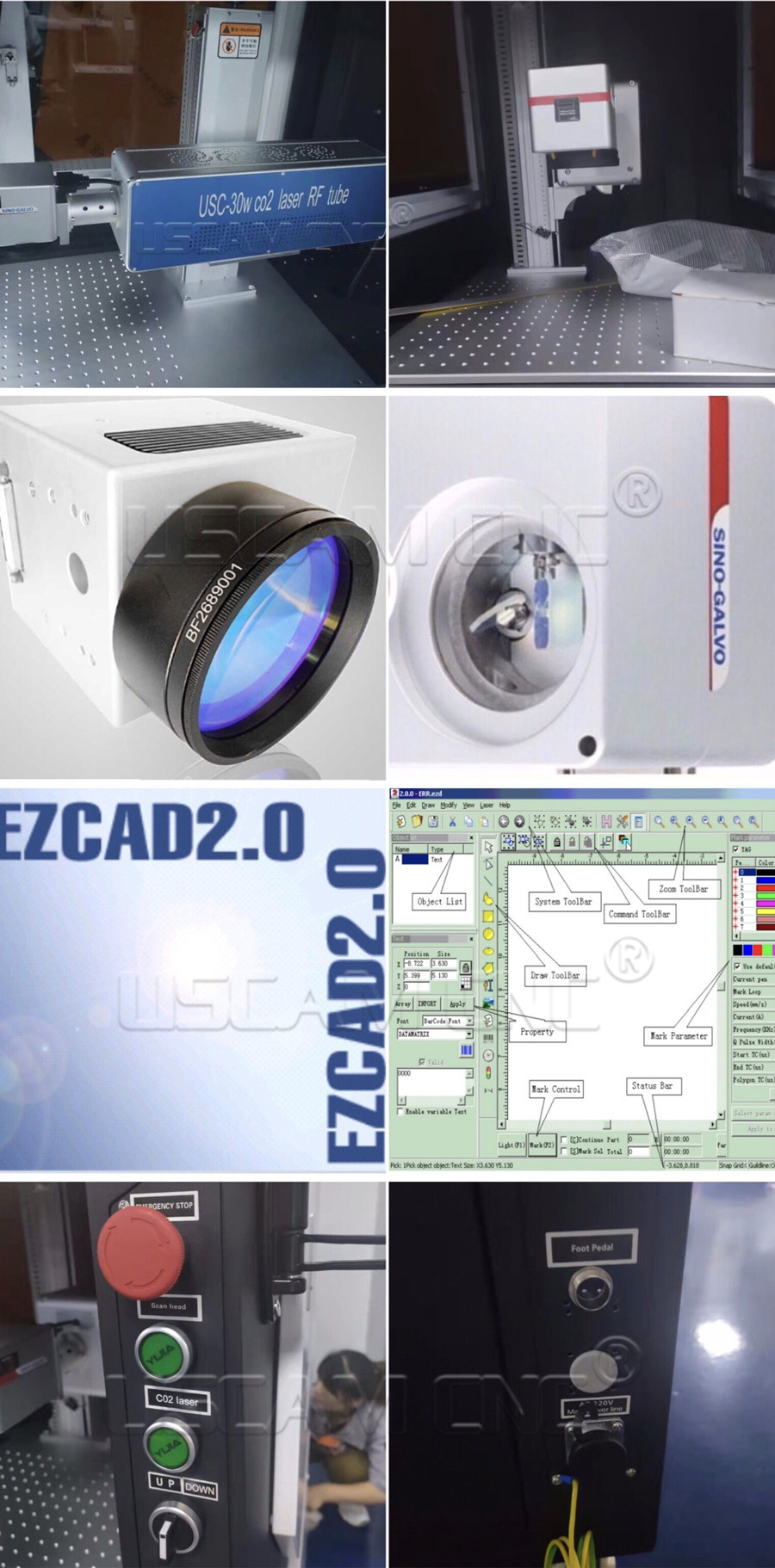

| Machine parts | Specification | Quantity |
Laser generator | China Davi or American Synrid | 1 set |
| Laser wavelength | 1064um | 1 set |
Galvanometer | Sino-galvo high speed scanning galvanometer | 1 set |
Controlling card | Original BJJCZ control card | 1 set |
| Controlling software | Original EZCAD Software | 1 set |
| Cooling system | Water cooling | 1 set |
Rotating head | USCAM | 1 set |
Fixture | USCAM | 1 set |
Suitable industries:
| USCAM 2D CO2 laser marking machine is suitable for most non-metallic materials, such as bamboo products, wood, acrylic, leather, cloth, paper, glass, architectural ceramics,ABS, PVC, epoxy resin, architectural ceramics, organic materials, PMMA sheet, plastic, rubber, etc. USCAM two-dimensional CO2 laser marking machine is widely used in pharmaceutical packaging, food packaging and beverage packaging industry, textile industry, leather industry, wood industry, handicraft supply industry, printing industry and electronic components, communication products, advertising industry, watches, glasses and Manufacturing industry of glass products. It is suitable for marking, engraving, hollowing out, and cutting various characters, symbols, graphics, images, barcodes, serial numbers, etc. of various non-metallic materials and products. |
| Material | CO2 Laser machine | Material | fiber laser machine |
| Wood | √ | Aluminum | √ |
| Acryic | √ | Stainless Steel | √ |
| Fabric | √ | ABS | √ |
| Glass | √ | Brass | √ |
| Coated Metals | √ | Carbon Fiber | √ |
| Ceramic | √ | Carbon Nanotube | √ |
| Delrin | √ | Cobait Chorme Steel | √ |
| Cloth | √ | Copper | √ |
| Leather | √ | Colored Delrin | √ |
| Marble | √ | Diallyl Phthalate | √ |
| Matte Board | √ | Gless Filled PPEK | √ |
| Melamine | √ | Gless Filled Telfon | √ |
| Paper | √ | Magnesium | √ |
| Mylar | √ | Metal Plated Ceramics | √ |
| Press Board | √ | Molybdenum | √ |
| Rubber | √ | Mild Steel | √ |
| Wood veneer | √ | Nylon | √ |
| Fiber Glass | √ | Polybutylene Terephthalate | √ |
| Paintde Metals | √ | Polysulphone | √ |
| Title | √ | PET | √ |
| Plastic | √ | Santoprene | √ |
| Cork | √ | Silicon Carbide | √ |
| Customers' feedback |
| # Customers are using machines very well and almost no problem. # Always get returned orders from agents and customers. # 10 points of praise for service from our customers # One of our customer bought a 3d dynamic fiber laser, and then bought a 3d dynamic co2 laser and 2d fiber laser marking machine. |
| QC And Service |
QC
Having been export to USA, Europe, Africa, Central America, Latin America, Mexico, UAE, Yemen, Pakistan, India, Korea, etc.
We have CE, FDA certification for easy exporting and importing.
Service
# 24 months-quality guarantythe machine with main parts(excluding the consumables) shall be changed free of charge if there is
any problemduring the warranty period without human damage.
# We will provide the consumable parts at an agency price when you need replacement.
# 24 hours on line service each day, by wechat, QQ, e-mail, cellphone or remotely controlled online.
# Lifetime patience and professional question and answer service(free technical support), even if it exceeds the warranty period.
# English manual and video for machine using and maintaining will send to you with the machine.
# Free training course at our plant.
# Our staff can be sent to your company to install or adjust if necessary.
| Packaging Detail: | Standard plywood Case for Export |
| Delivery Detail: | 7-10 day after order confirmation |

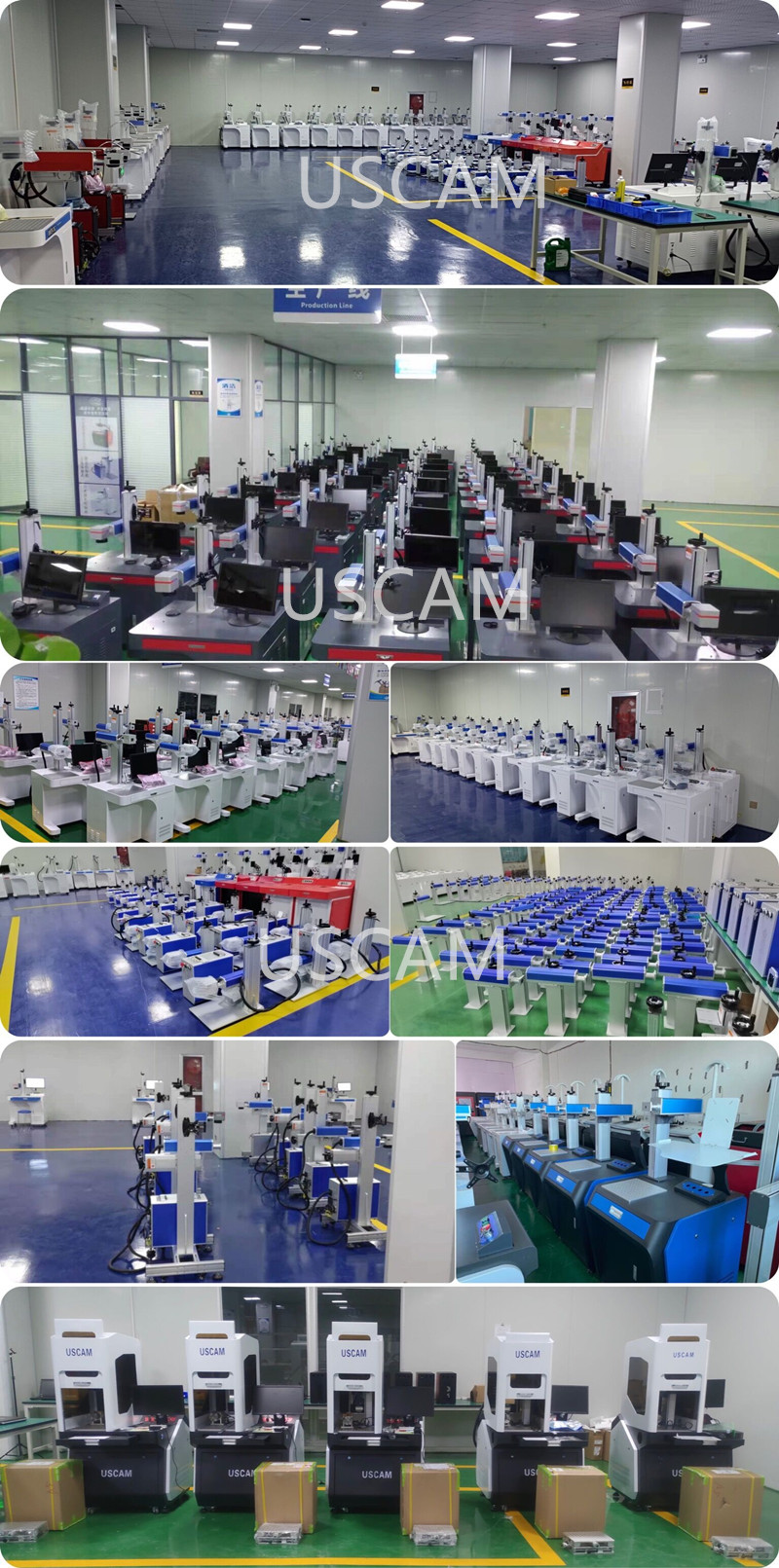

| Customers in our company |
| If you come to our factory, you must be impressed by our sincere, enthusiasm, profession, machine quality and best 10 out of 10 service |
| Company Profile |
| USCAM specialized in in fiber laser cutting machine, laser marking machine, laser cleaning machine, laser welding machine, co2 laser, CNC router (ATC, Stone machine, molding machine, vibrating knife etc), plasma (gantry plasma, 5 axis, 8 axis and robort plasma etc) and other fields are the leading companies in China's laser industry since 2003. All machines have passed CE FDA certification, and the main configuration adopts top components imported from Italy, Japan, Germany, the United States, etc., such as Synrid, Coherent, HSD spindle, THK bearing system, Siemens control system, YASKAWA servo. Relying on strong high-tech strength, it has been highly recognized by relevant international quality systems and government departments in product software research and development, quality inspection files, etc. High-quality products and excellent after-sales service have enabled the company to reach an excellent level, and have been widely supported by customers and agents. USCAM Laser is CE and FDA certified. Our products can be found in Europe, America, UAE, Australia, India, Central America, Kuwait, etc. Please do not hesitate to contact us if you need more information. Hope that we will have a chance to give you a great laser solution with USCAM Laser products. If you have any questions, please feel free to let us know. |
| FAQ: How to choose a CNC fiber laser marking machine? |
1.Comfirming the marking field lens according to your marking size.
| Lens model | Marking size | Power Aviliable |
| F160 | 110*110mm | 20w/30w/50w |
| F210 | 150x150mm | 20w/30w/50w |
| F290 | 200*200mm | 20w/30w/50w |
| F430 | 300*300mm | 30w/50w |
| F580 | 400x400mm | 50w |
2.Choose a big brand laser source
There is glass tube and also RF tube.
Glass tube is one time using. After the glass tube is used up, need to change a new one.
RF tube means, after it used up, you could refill the gas and continue to use it.
3.Confirming if you need extra optional parts according to your marking requirements:
4.Payment term: 30% T/T in advance and 70% before delivery.
5.Packing and Shipping matter:
1)Packing: After 30% payment, we will produce the machines for you and after it finished, we will take video test and pictures for you.
After you think is ok, we will pack carefully with strong wood box, which is export standard wood box.
2).Shipping: You could ship with your own shipper if it's convenient. and we could help to ship for you.
6.Laser marking machine types:
1.Fiber laser marking machine(1064nm): metal and non-metal(Such as steel, aluminium,pvc etc)
2.Co2 laser marking machine(10.64um): non-metal(Such as wood, leather)
3.UV laser marking machine(355nm): metal and more non-metal(such wine glass)
| Material | CO2 Laser machine | Material | fiber laser machine |
| Wood | √ | Aluminum | √ |
| Acryic | √ | Stainless Steel | √ |
| Fabric | √ | ABS | √ |
| Glass | √ | Brass | √ |
| Coated Metals | √ | Carbon Fiber | √ |
| Ceramic | √ | Carbon Nanotube | √ |
| Delrin | √ | Cobait Chorme Steel | √ |
| Cloth | √ | Copper | √ |
| Leather | √ | Colored Delrin | √ |
| Marble | √ | Diallyl Phthalate | √ |
| Matte Board | √ | Gless Filled PPEK | √ |
| Melamine | √ | Gless Filled Telfon | √ |
| Paper | √ | Magnesium | √ |
| Mylar | √ | Metal Plated Ceramics | √ |
| Press Board | √ | Molybdenum | √ |
| Rubber | √ | Mild Steel | √ |
| Wood veneer | √ | Nylon | √ |
| Fiber Glass | √ | Polybutylene Terephthalate | √ |
| Paintde Metals | √ | Polysulphone | √ |
| Title | √ | PET | √ |
| Plastic | √ | Santoprene | √ |
| Cork | √ | Silicon Carbide | √ |
